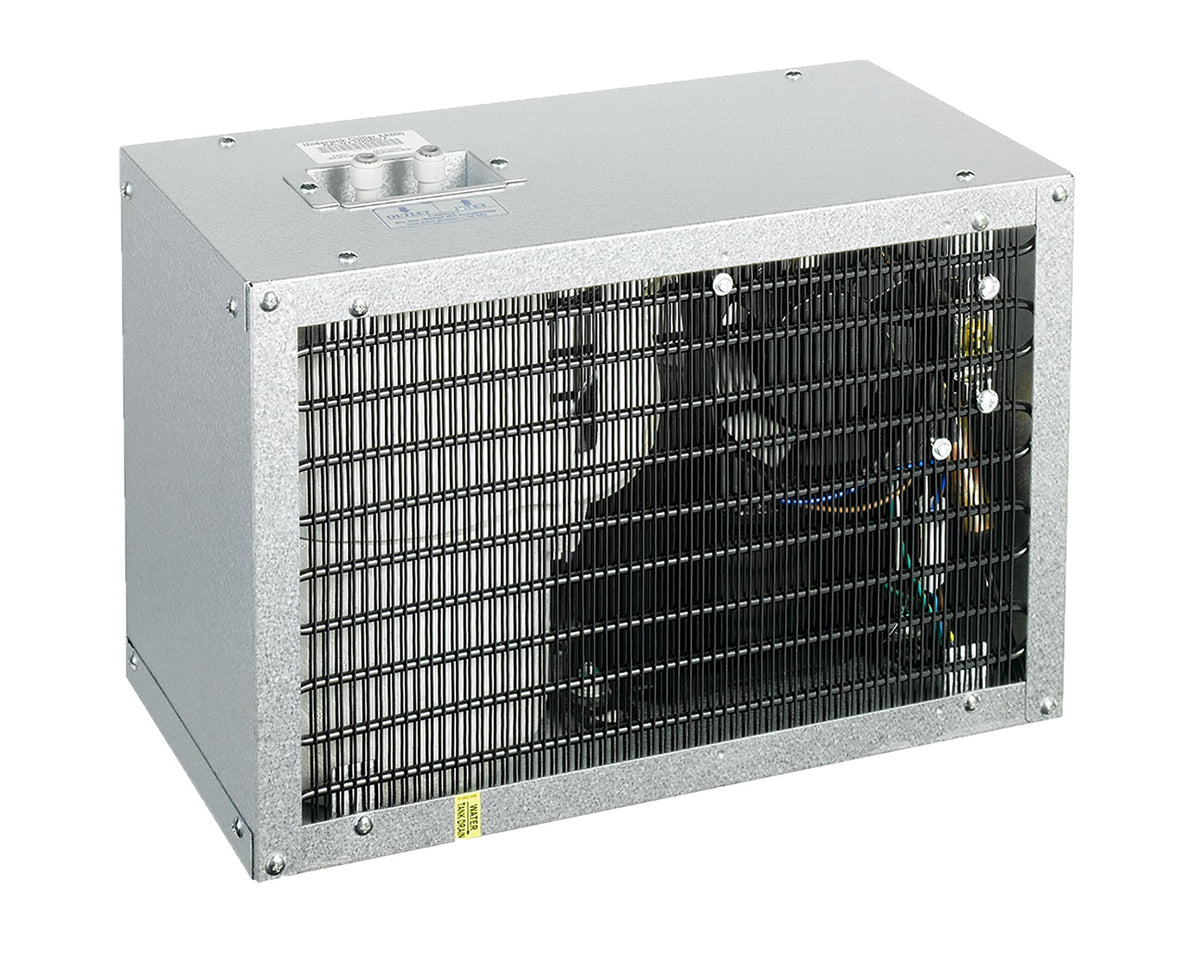

AA First UC800 Undersink Chiller
Selected option: Chiller Only
Product reference: UC800M
Keep the cooling equipment below the counter and drinking water within easy reach. The AA First UC800M is a compact undersink chiller with a recorded chilled output of 11.5 litres per hour.
Chiller only or a matched tap option
Choose the unit on its own for a compatible existing installation, or the option supplied with a manual swan-neck tap. Allow for ventilation, filtration and service access beneath the worktop. Published dimension orientations differ, so confirm the ordered unit's layout before preparing the cabinet.
Specifications & details
Chiller Only
| Installation | Install in a well-ventilated cabinet with mains water, filtration and suitable tap/drainage arrangement. |
|---|---|
| Chilled output | 11.5 L/h |
| Approx. weight | 12.5kg |
| Current brochure dimensions | 260 × 290 × 400mm (site literature; shop literature may show orientation differently) |
| Supply | 220–240V, 50/60Hz |
Figures apply to the stated configuration. Allow for service access and confirm the utilities and optional equipment in your quotation.
Suitable applications
Offices
Kitchenettes
Tap and fountain installations
Installation
Install in a well-ventilated cabinet with mains water, filtration and suitable tap/drainage arrangement.
Care & servicing
Keep ventilation clear; sanitise system and replace filters to service schedule.
